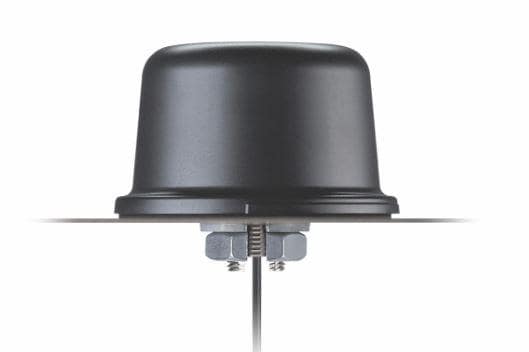

Taoglas XAHP.50.A.301111 Active Antenna Colosseum* XAHP.50 Active Multi-Band GNSS External Antenna

Gain: 7.4 dBi, 28 dB

VSWR: 1.3:1, 1.4:1, 1.5:1

Style: Dome

Length: 57 mm

Diameter: 94 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG174

Application: Autonomous Driving, Precision Agriculture

Cable Length: 3 m

Polarization: RHCP

Mounting Style: Direct / Permanent Mount

Number of Bands: 7 Band

Center Frequency: 1.227 GHz, 1.278 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz

Mechanical Style: Module

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.17645 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
