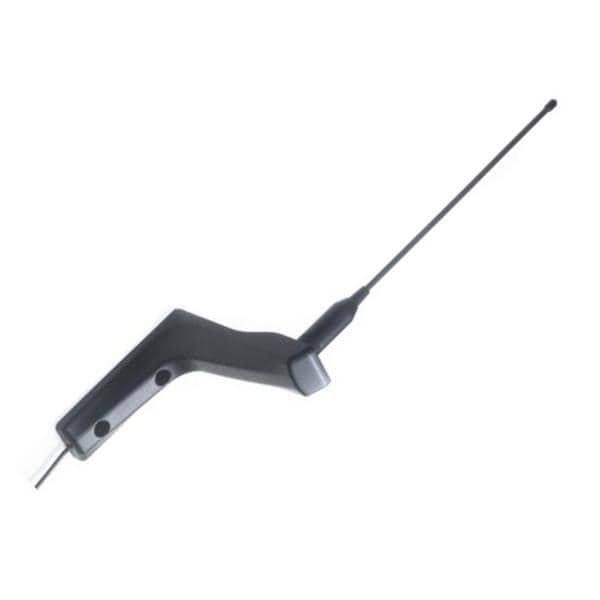

Taoglas WM.90.A.305111 Passive Antenna Cyclops WM.90 4G/3G/2G Cat M1/LTE-M Wall Mount Flexible Whip

Gain: - 2.11 dBi, - 1.3 dBi, - 0.27 dBi, 2.45 dBi, 3.35 dBi, 2.83 dBi, 3.45 dBi

Style: Straight with Base

Length: 248 mm

Diameter: 17.08 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M CFD200

Technology: Penta Band Cellular

Application: Automotive, Industrial

Unit Weight: 420 g

Cable Length: 3 m

Polarization: Linear

Power Rating: 2 W

Mounting Style: Bracket Mount

Electrical Type: Monopole

Number of Bands: 7 Band

Center Frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz

Mechanical Style: Whip

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
