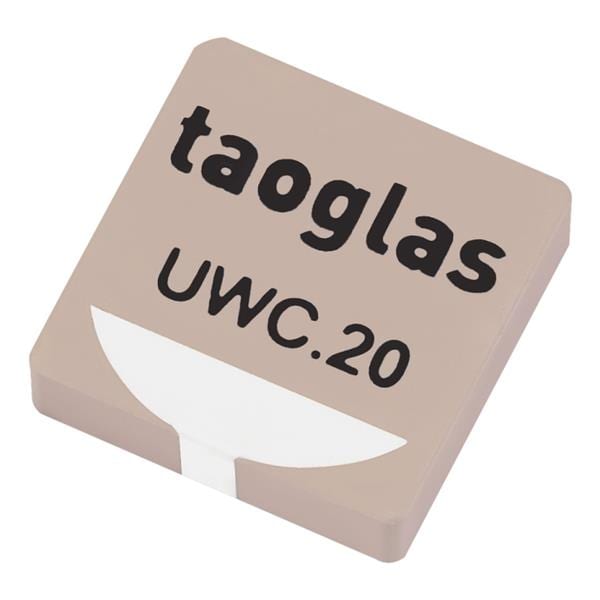

Taoglas UWC.20 Passive Antenna Accura UWB UWC.20 3-5GHz & 6-9GHz Ultra Wideband (UWB) SMD Chip Antenna

Gain: 6 dBi, 3.5 dBi, 2.5 dBi

VSWR: 2:1, 2:1, 3:1

Width: 12 mm

Height: 3 mm

Length: 12 mm

Impedance: 50 Ohms

Application: Automotive Sensors, Precision Surveying, Smart Home, Entertainment Systems, Position Tracking

Unit Weight: 4 g

Polarization: Linear

Power Rating: 10 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 4 GHz, 7.1 GHz, 8.5 GHz

Mechanical Style: Chip

Maximum Frequency: 9 GHz

Minimum Frequency: 3.1 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: UWB, Channel

Protocol - WiFi - 802.11: 802.11, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
