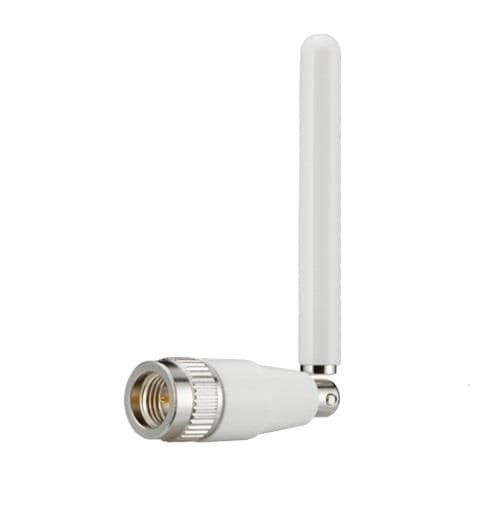

Taoglas TS.07.0113W Passive Antenna White GPS/GLONASS/GALILEO/BeiDou Antenna Hinged SMA Male

Gain: - 0.16 dBi, - 0.23 dBi, 1.79 dBi, 1.94 dBi, 1.96 dBi, 1.99 dBi, 2.21 dBi, 3.98 dBi, 4.31 dBi

Style: Right Angle, Straight

Length: 72 mm

Impedance: 50 Ohms

Application: Remote Monitoring Systems, Telematics Devices, Vehicle Tracking Devices

Polarization: Linear

Power Rating: 10 W

Mounting Style: Screw Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 1.561 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Hinged

Ground Plane Size: 15 cm x 9 cm, 30 cm x 30 cm

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.561 GHz

Termination Style: Connector

Antenna Connector Type: SMA (Male)

Protocol - GPS, GLONASS: BeiDou, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
