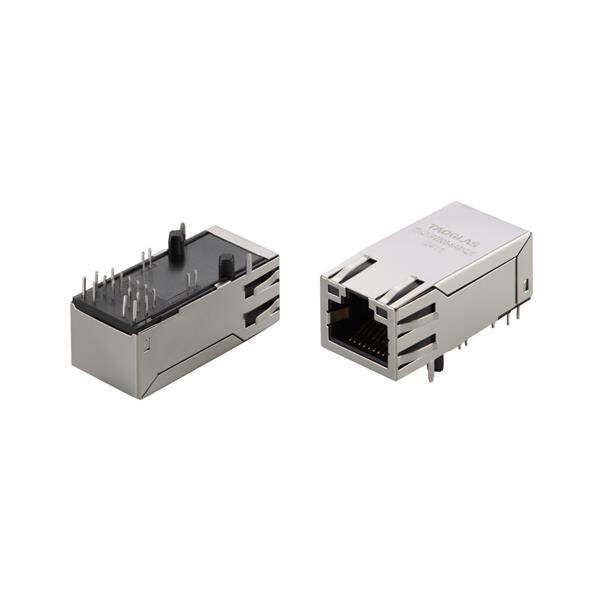

Taoglas TMJMP9696-8A9NLK RJ45 Connector RJ45 ICM, 1x1, 10G Base-T, Tab-Up, Long Body, 3Wire + Transformer, LED, Shielded EMI Finger, PoE (720mA), 30 micro-in, Industrial grade

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Application: Industrial Automation

Configuration: 1x1

Tab Direction: Tab Up

Current Rating: 720 mA

Mounting Angle: Right Angle

Mounting Style: PCB Mount

Contact Plating: Gold

LED L / R Color: Yellow, Green, Green

Number of Ports: 1 Port

Contact Material: Copper

Termination Style: Through Hole

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
