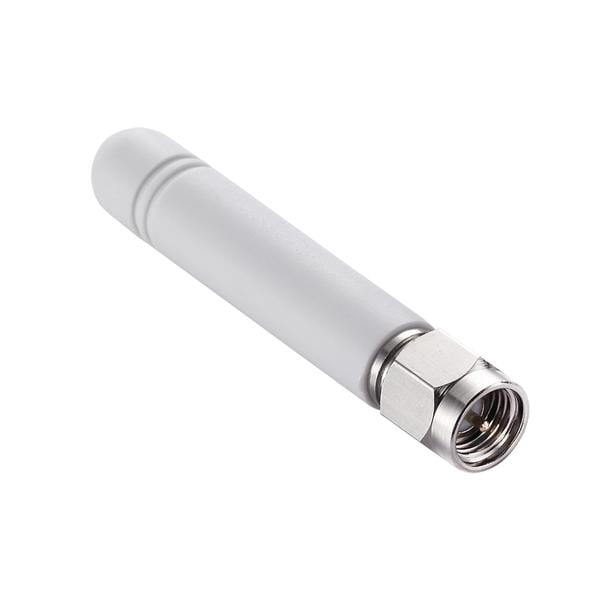

Taoglas TG.22.0111w Passive Antenna TG.22 3G/2G Cellular White Connector Mount Monopole, SMA(M)

Gain: 1.24 dBi, 1.91 dBi, 2.51 dBi, 3.23 dBi, 2.89 dBi

VSWR: 3.5

Style: Straight

Length: 48 mm

Diameter: 8 mm

Impedance: 50 Ohms

Technology: Penta Band Cellular

Application: Remote Monitoring

Unit Weight: 5.500 g

Polarization: Linear

Power Rating: 20 W

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 6 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz

Mechanical Style: Helical

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
