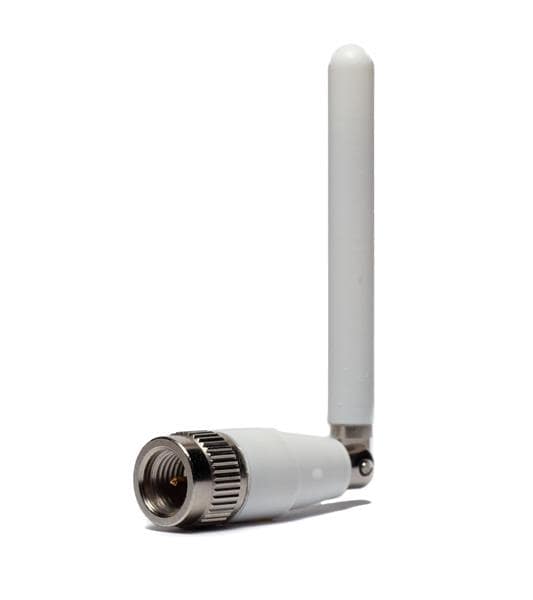

Taoglas TG.09.0113w Passive Antenna TG.09 4G White Connector Mount Monopole Antenna

Gain: - 3 dBi, - 2.6 dBi, 3 dBi, 0.9 dBi, 0.9 dBi, 0.9 dBi, - 1.3 dBi, 1.1 dBi, 1.8 dBi, 3.1 dBi

Style: Tilt/Swivel

Length: 72 mm

Diameter: 10 mm

Impedance: 50 Ohms

Technology: Penta Band Cellular

Application: Routers, Vehicle Tracking Devices, Telematics Devices, Remote Monitoring Systems, POS Devices

Unit Weight: 8 g

Polarization: Linear

Power Rating: 10 W

Mounting Style: Panel Mount

Electrical Type: Monopole

Number of Bands: 10 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2300 MHz, 3500 MHz, 3700 MHz

Mechanical Style: Whip

Maximum Frequency: 2.1 GHz

Minimum Frequency: 850 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
