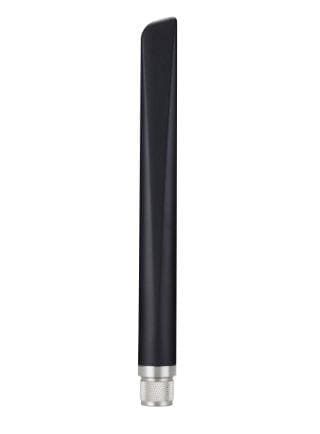

Taoglas TD.95.6H31 Passive Antenna TD.95.6H31 Blade 868/915MHz Omnidirectional Dipole Terminal Mount Antenna

Gain: 1.33 dBi, 1.54 dBi

Length: 228 mm

Diameter: 22.8 mm

Impedance: 50 Ohms

Application: Digital Signage, Remote Monitoring

Polarization: Linear

Power Rating: 10 W

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 2 Band

Center Frequency: 868 MHz, 915 MHz

Mechanical Style: Whip

Maximum Frequency: 915 MHz

Minimum Frequency: 868 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: N Male

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
