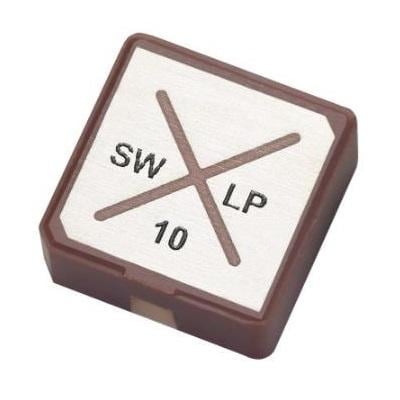

Taoglas SWLP.2450.10.4.A.02 Passive Antenna SWLP.2450.10.4.A.02 2.4GHz 10*10*4mm SMD Patch Antenna

Gain: - 1 dBi

Style: Ceramic

Width: 10 mm

Height: 4 mm

Length: 10 mm

Bandwidth: 8 MHz

Impedance: 50 Ohms

Application: Wearables, Tablets, Handheld Devices, USB Dongles, Smart Home Application

Unit Weight: 3.100 g

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Patch

Ground Plane Size: 12 mm x 16 mm

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
