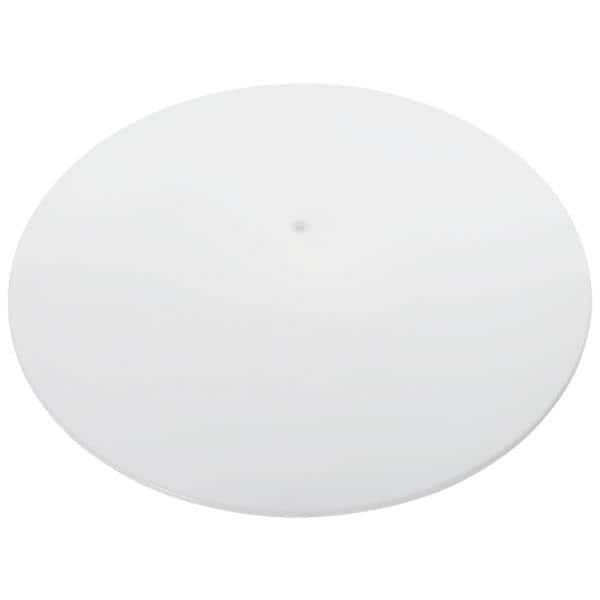

Taoglas RI.09.A.0121 Passive Antenna ADHESIVE MOUNT 915MHZ ANTENNA

Gain: 3.15 dBi

Style: Dome

Length: 17.6 mm

Diameter: 101.4 mm

IP Rating: IK10

Impedance: 50 Ohms

Application: Smart Metering, Remote Monitoring, Security

Unit Weight: 162 g

Polarization: Linear

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: Module

Maximum Frequency: 928 MHz

Minimum Frequency: 902 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: SMA Female

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
