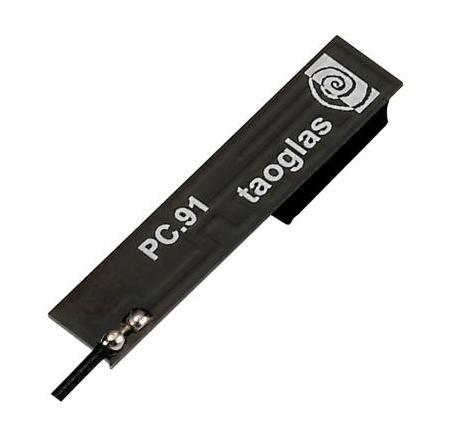

Taoglas PC91.07.0100A.db Passive Antenna PC91 915MHz 2.67dBi ISM Mini PCB Antenna 100mm 1.13

VSWR: 2:1

Style: I-Bar

Width: 7 mm

Height: 0.8 mm

Length: 34 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: ISM Application

Unit Weight: 1.030 g

Cable Length: 100 mm

Polarization: Horizontal

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 915 MHz

Minimum Frequency: 902 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: IPEX MHF

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
