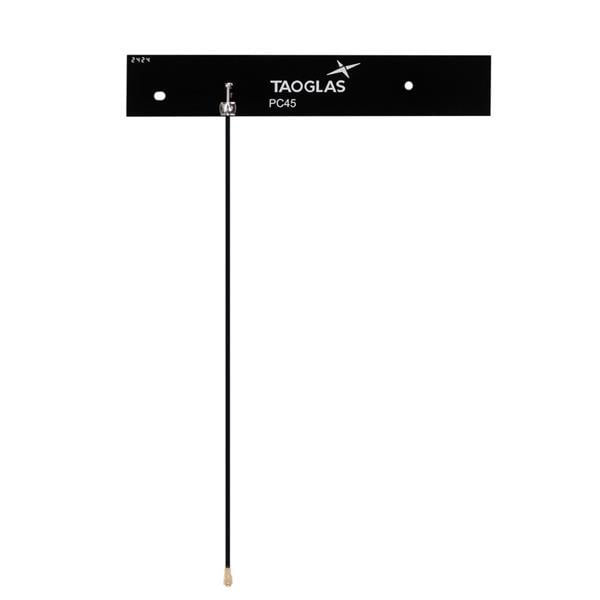

Taoglas PC45.07.0150AQ Cellular Wideband Cellular 120x20mm PCB Antenna (450-6000MHz) with Black 150mm 1.13 Cable and I-PEX MHF1

Gain: 0.19 dBi, 2.06 dBi, 2.3 dBi, 2.54 dBi, 3.79 dBi, 3.86 dBi, 3.95 dBi, 5.66 dBi,

Width: 20 mm

Height: 1.06 mm

Length: 120 mm

Impedance: 50 Ohms

Cable Type: 1.37 mm Coax

Cable Length: 150 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: PCB Mount

Frequency Range: 617 MHz to 698 MHz, 698 MHz to 824 MHz, 824 MHz to 960 MHz, 1427 MHz to 1518 MHz, 1710 MHz to 2200 MHz, 2300 Mhz to 2690 MHz, 3300 MHz to 5000 MHz, 5150 MHz to 5925 MHz

Number of Bands: 8 Band

Maximum Frequency: 5.92 GHz

Minimum Frequency: 617 GHz

Antenna Connector Type: IPEX MHF1

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
