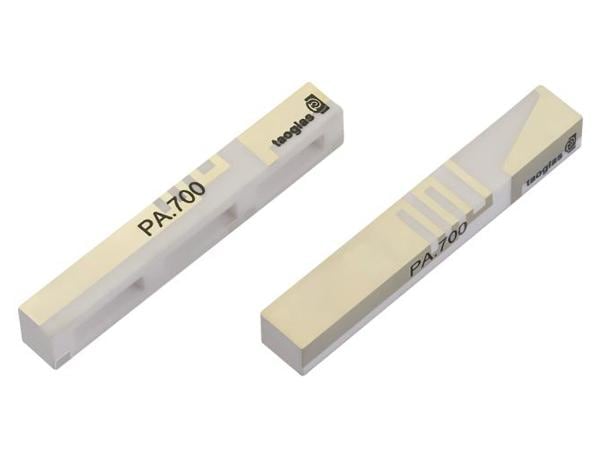

Taoglas PA.700.A Passive Antenna Viking - Wide-Band LTE/Cellular/CDMA SMD Antenna

Gain: 2 dBi, 1.4 dBi, 0.9 dBi, 3.7 dBi, 3.9 dBi, 4.1 dBi

VSWR: 3:1

Style: Ceramic

Width: 6 mm

Height: 5 mm

Length: 40 mm

Impedance: 50 Ohms

Technology: 4G LTE, Cellular, CDMA

Application: Cellular Application

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: PIFA

Number of Bands: 6 Band

Center Frequency: 750 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz

Mechanical Style: Chip

Maximum Frequency: 2.17 GHz

Minimum Frequency: 868 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
