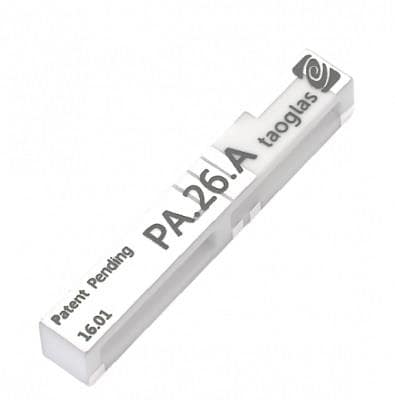

Taoglas PA.26A Passive Antenna Anam PA.26A, 35*5*6mm Wideband LTE SMD Antenna

Gain: 1.13 dBi, 1.79 dBi, 1.87 dBi, 3.71 dBi, 3.04 dBi, 2.43 dBi, 3.86 dBi, 2.75 dBi

VSWR: 3.5:1

Style: Ceramic

Width: 5 mm

Height: 6 mm

Length: 35 mm

Impedance: 50 Ohms

Technology: LTE

Application: Telematics Control Unit, Medical Devices, First Responder, Emergency Services, Intelligent Transport Systems, HD Video Broadcast Systems over LTE

Unit Weight: 3 g

For Use With: 4G/3G/2G Applications

Polarization: Linear

Power Rating: 5 W

Mounting Style: PCB Mount

Electrical Type: PIFA

Number of Bands: 8 Band

Center Frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2350 MHz, 2500 MHz, 3500 MHz

Mechanical Style: Chip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA, EDGE, GPRS
