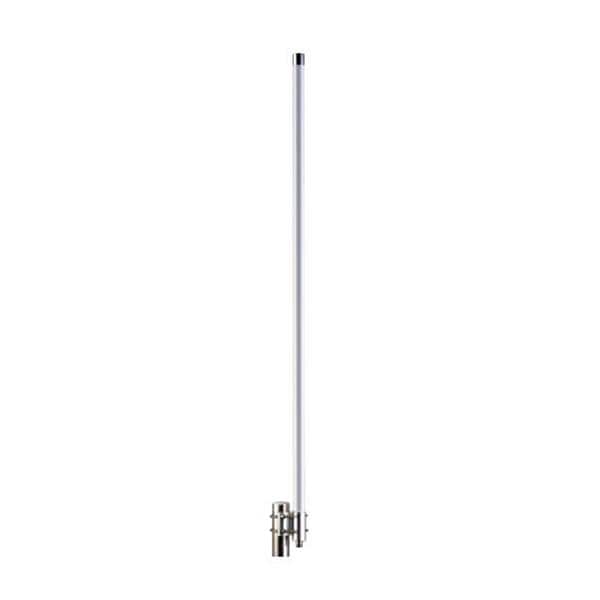

Taoglas OMB.915.B12F21 Passive Antenna N TYPE OUTDOOR OMNI ANTENNA

Gain: 11.7 dBi

VSWR: 2:1

Style: Fiberglass

Length: 2240 mm

Diameter: 24 mm

IP Rating: IP65

Impedance: 50 Ohms

Application: Metering, Industrial Monitoring, Environmental Monitoring, Remote Asset Monitoring, Mesh Network Application

Polarization: Vertical

Power Rating: 200 W

Mounting Style: Bracket Mount

Number of Bands: 1 Band

Center Frequency: 915 MHz

Mechanical Style: Collinear

Maximum Frequency: 928 MHz

Minimum Frequency: 902 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, RFID

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
