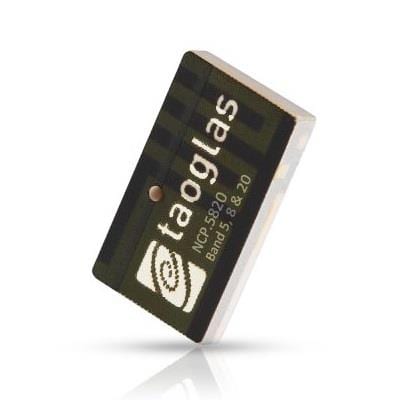

Taoglas NCP.5820 Passive Antenna NCP.5820 - Extensis Small Form Factor NB-IoT Ceramic Antenna for Bands 5, 8 & 20

Gain: 0.6 dBi, 1.2 dBi, 1.1 dBi, 1.7 dBi, - 0.3 dBi

Style: Ceramic

Width: 8.3 mm

Height: 2 mm

Length: 14.1 mm

Impedance: 50 Ohms

Application: Remote Monitoring, Smart Meter, Smart City, Agriculture, Network Devices, Environment, Asset Tracking, Manufacturing Automation

Unit Weight: 760 mg

Power Rating: 5 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 5 Band

Center Frequency: 850 MHz, 900 MHz, 868 MHz, 915 MHz

Mechanical Style: Chip

Maximum Frequency: 960 MHz

Minimum Frequency: 791 MHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - Sub GHz: ISM, RFID

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
