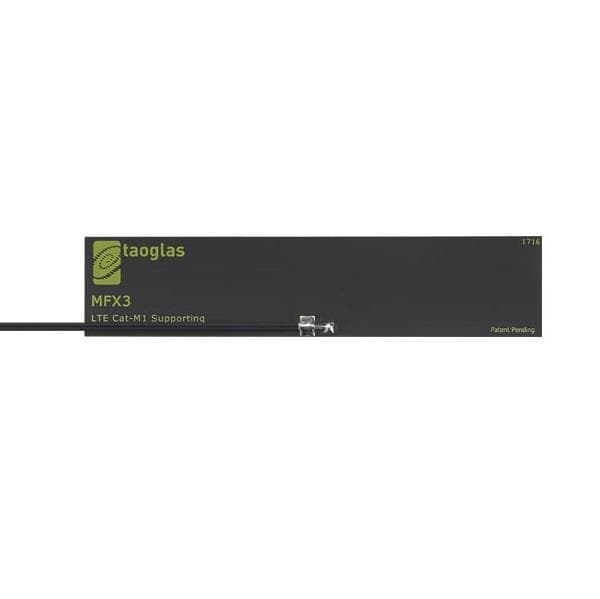

Taoglas MFX3.07.0150C Passive Antenna MFX3.07 NB-IoT / CAT M1 Wideband Flexible Antenna

Gain: 0.21 dBi, 0.36 dBi, 3.07 dBi, 3.1 dBi, 3.68 dBi, 4.51 dBi

Style: I-Bar Flex

Width: 21 mm

Height: 0.2 mm

Length: 96 mm

Impedance: 50 Ohms

Cable Type: 150 mm RG1.37

Technology: NB-IoT / CAT M1

Application: Automotive, Medical, Smart City, Smart Meter

Unit Weight: 2.442 g

Cable Length: 150 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Number of Bands: 6 Band

Center Frequency: 700 MHz, 1.7 GHz, 1.9 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 3 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
