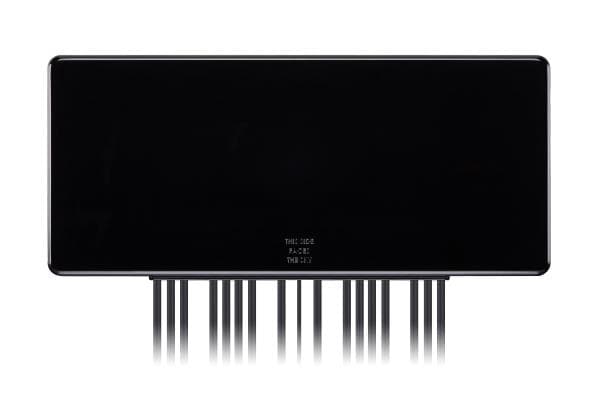

Taoglas MA9917.A.001.wm MIMO WALL MOUNT COMBO ANTENNA

VSWR: 2.0:1, 2.0:1

Width: 160 mm

Height: 20.5 mm

Length: 360 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M RG174, 3 M TGC200 x 16

Application: Automotive, Heavy Equipment, HD Video, M2M/IoT

Cable Length: 3 m

Polarization: Linear, RHCP

Power Rating: 20 W

Mounting Style: Bracket Mount

Electrical Type: Active

Number of Bands: 16 Band

Center Frequency: 657 MHz, 700 MHz, 850 MHz, 900 MHz, 1474 MHz, 2100 MHz, 2600 MHz, 3500 MHz, 5200 MHz, 2400 MHz, 2450 MHz, 5200 MHz, 5500 MHz, 5800 MHz, 6000 MHz, 7.125 GHz, 1561 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 7.125 GHz

Minimum Frequency: 600 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male, SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA, HSPA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
