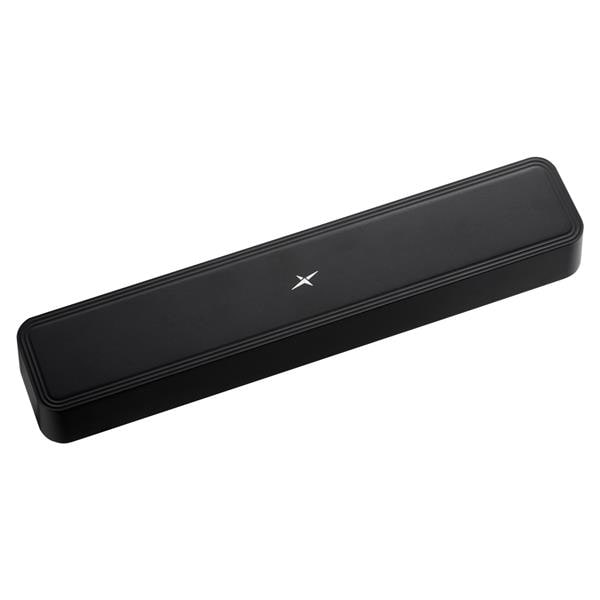

Taoglas MA8007.A.001 Indoor Antennas 7in1 Screwmount 2m RG-174/TGC-302 GNSS L1/L5 SMA(M) 5G(1-4) SMA(M) Wi-Fi(1-2) RP-SMA(M)

Gain: 2.49 dBi, 3.38 dBi, 3.93 dBi

Width: 70 mm

Height: 39 mm

Length: 350 mm

IP Rating: IP69K

Impedance: 50 Ohms

Cable Type: RG-174, TGC-302

Cable Length: 2 m

Polarization: RHCP

Power Rating: 2 W

Frequency Range: 1.164 GHz to 1.189 GHz, 1.559 GHz to 1.592 GHz, 1.565 GHz to 1.586 GHz, 1.596 GHz to 1.61 GHz

Number of Bands: 4 Band

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.164 GHz

Termination Style: Screw

Antenna Connector Type: SMA

Protocol - GPS, GLONASS: GPS, GLONASS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
