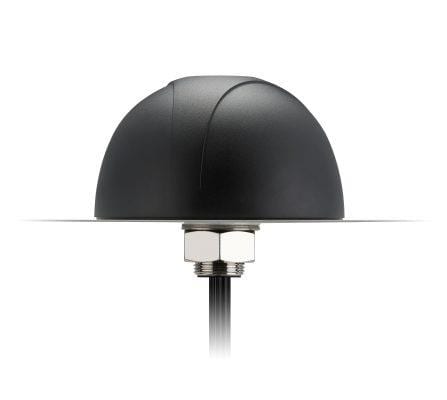

Taoglas MA752.B.ABICG.001 MIMO Pantheon MA752.B 5in1 LTE MIMO, Wi-Fi MIMO and GPS/GLONASS Antenna

Gain: 28 dB

VSWR: 2, 3

Style: Dome

Height: 20 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: CFD-200, TG-174

Technology: Cellular, GPS, LTE, WiFi, MiMo

Application: Cellular, GPS, GLONASS, WiFi

Cable Length: 3 m

For Use With: LTE, GPS/GLONASS, WiFi 802.11n

Polarization: Linear, RHCP

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 5 Band

Center Frequency: 460 MHz, 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 2600 MHz, 1575 MHz, 1602 MHz, 2400 MHz, 5800 MHz

Mechanical Style: Module

Maximum Frequency: 5.85 GHz

Minimum Frequency: 450 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male, SMA Male

Protocol - GPS, GLONASS: Galileo, GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, HSPA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
