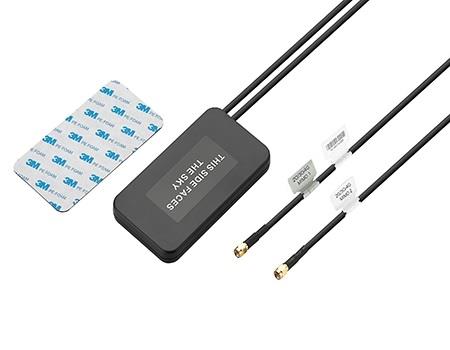

Taoglas MA251.A.BI.001 MIMO Sentinel MA251 Adhesive Mount 2*LTE MIMO Antenna

Style: I-Bar

Width: 76 mm

Height: 14 mm

Length: 139 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 2 M TGC200, 2 M RG174

Technology: Cellular, LTE, MiMo

Application: HD Video over LTE, First Responder, Emergency Services, Automotive Vehicle Tracking, Telematics

Unit Weight: 235 g

Cable Length: 2 m

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Active

Number of Bands: 2 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA
