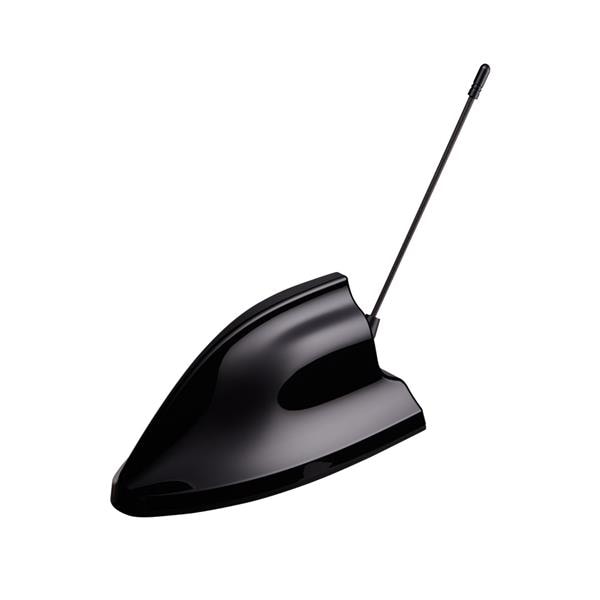

Taoglas MA1290.K.LBICGRT.001 Shark Fin 7in1 RaptorIII 3m :GNSS:AM/FM:5G/4G(1&2)SMA(M):WiFi(1&2)RP-SMA(M):VHF/UHF/LMR Whip:MiniUHF(M)

Gain: 35 dB

VSWR: 2:1

Style: Sharkfin

Width: 95 mm

Height: 92 mm

Length: 190 mm

Frequency: 2.4 GHz, 5.8 GHz

Impedance: 50 Ohms

Cable Type: TGC-200

Application: Autonomous Driving And Robotics

Cable Length: 3 m

Polarization: RHCP

Mounting Style: Direct / Permanent Mount

Frequency Range: 1.17645 GHz to 1.57542 GHz

Number of Bands: 2 Band

Center Frequency: 1.561 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Fin

Maximum Frequency: 1.57542 GHz

Minimum Frequency: 1.17645 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
