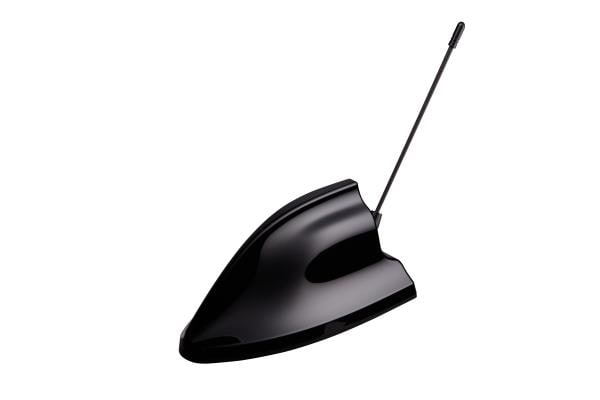

Taoglas MA1270.A.LBICGTY.005 MIMO Shark Fin Antenna

VSWR: 2:1

Style: Sharkfin

Width: 95 mm

Height: 92.98 mm

Length: 190 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M RG174 x 7

Application: Transportation, Fleet Management, Autonomous Driving, Robotics, FirstNet, First Responders, Emergency Services

Cable Length: 3 m

Polarization: RHCP

Power Rating: 10 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 7 Band

Center Frequency: 657 MHz, 700 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 Mhz, 1900 MHz, 2100 MHz, 2600 MHz, 3400 MHz, 5200 MHz, 5800 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Whip

Maximum Frequency: 5.925 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male, RP-SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
