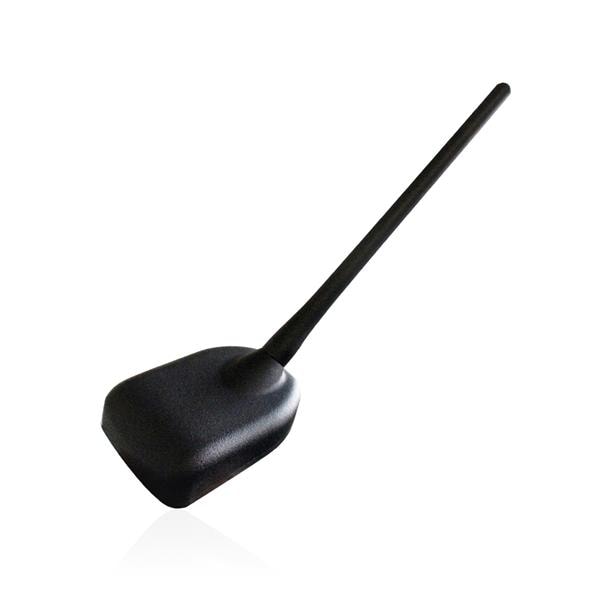

Taoglas MA1045.A.ALBTX.002 MIMO MA1045 Supercombo Vehicle Mount 5in1 Antenna 2*GPS, Cellular, AM/FM SiriusXM

Gain: 0.6 dBi, 2.7 dBi, 2.7 dBi, 4.4 dBi, 2.2 dBi, 1.2 dBi, 4.6 dBi, 5.4 dBi

Style: Straight with Base

Width: 96.61 mm

Height: 61.45 mm

Length: 165.45 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG174

Application: Cellular Application, Satellite Tracking/Navigation, Wireless Application

Unit Weight: 230 g

Cable Length: 300 mm

Polarization: LHCP, RHCP

Mounting Style: Direct / Permanent Mount

Number of Bands: 5 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 2328 MHz, 1561.098 MHz, 1575.42 MHz,

Mechanical Style: Whip

Maximum Frequency: 2.5 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: FAKRA A, FAKRA C, FAKRA D, FAKRA K

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
