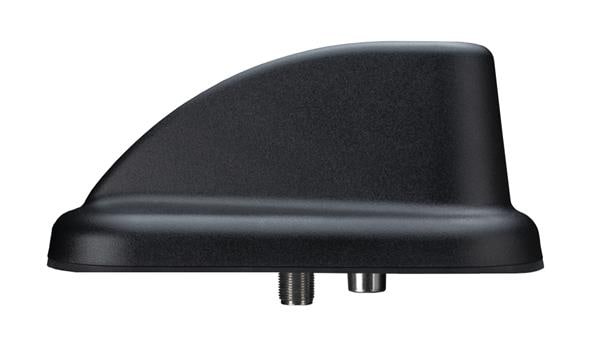

Taoglas MA1044.A.ACTX.002 MIMO MA1044 GPS, Wi-Fi, AM/FM & SDARS 4in1 Sharkfin Antenna

Gain: 4 dBi, 4.5 dBi, 6 dBi

Style: Sharkfin

Width: 80.91 mm

Height: 80.8 mm

Length: 183.64 mm

IP Rating: IP65

Impedance: 50 Ohms

Cable Type: 3 M RG174 x 4

Application: Cellular Application, Satellite Tracking/Navigation, Wireless Application

Unit Weight: 440 g

Cable Length: 300 mm

Polarization: LHCP, RHCP

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 4 Band

Center Frequency: 535 kHz, 1605 kHz, 108 MHz, 2328 MHz, 2450 MHz, 5500 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.83 GHz

Minimum Frequency: 88 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: FAKRA A, FAKRA C, FAKRA I, FAKRA K

Protocol - GPS, GLONASS: Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
