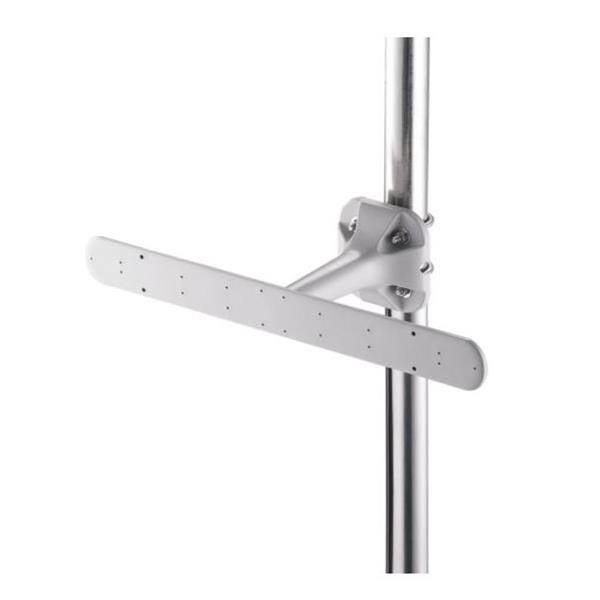

Taoglas LWB01.A.505111 Passive Antenna MULTI MOUNT 4G ANTENNA

Gain: 1.89 dBi, 2.64 dBi, 2.4 dBi, 2.02 dBi, 1.71 dBi, 1.29 dBi, 1.33 dBi

Style: Bar

Width: 45 mm

Height: 157 mm

Length: 425.5 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 M CFD200

Application: Worldwide Telematics, Cellular Communication

Cable Length: 5 m

Polarization: Linear

Mounting Style: Bracket Mount

Electrical Type: Dipole

Number of Bands: 7 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 689 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, UMTS, EDGE, GPRS, HSPA, WCDMA
