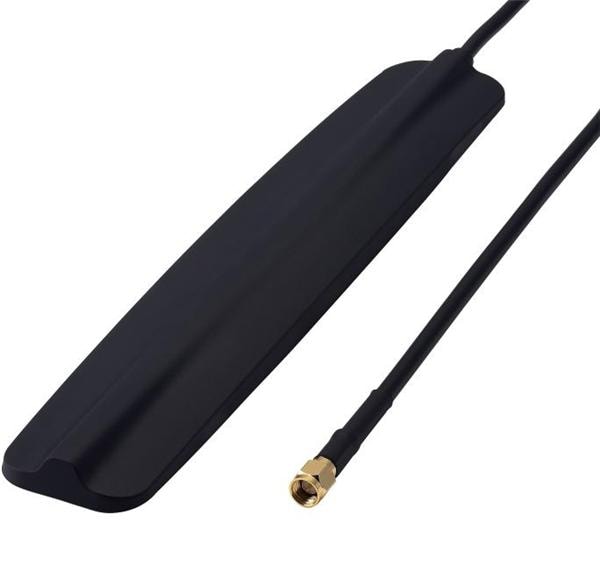

Taoglas ISA.01.A.301111 Passive Antenna I-Bar ISA.01 400-470MHz 1.5dBi Adhesive Glass Mount Antenna, 3M RG-174

Gain: 0 dBi

Style: I-Bar

Width: 42 mm

Height: 11 mm

Length: 239 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M RG174

Application: ISM Application, TETRA, Cellular Application

Cable Length: 3 m

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 410 MHz, 433 MHz, 450 MHz

Mechanical Style: Module

Maximum Frequency: 470 MHz

Minimum Frequency: 400 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: GSM, CDMA
