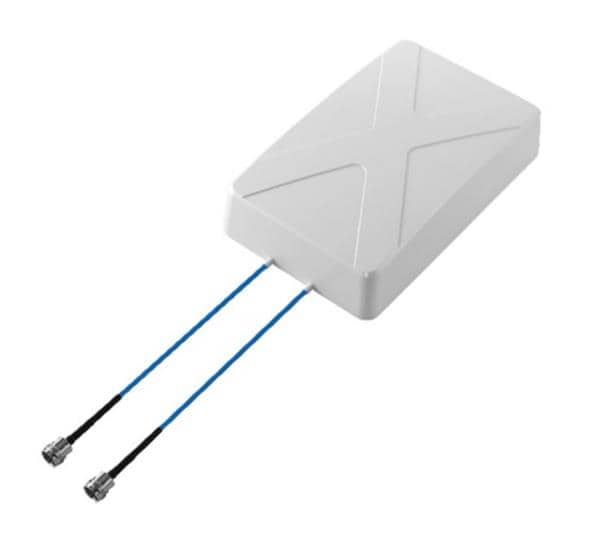

Taoglas iDAS.W.001 MIMO iDAS.W.001 MIMO LTE Wall Mount Panel Antenna

Gain: 7.2 dBi, 7.1 dBi, 7 dBi, 7.1 dBi, 7 dBi, 7.1 dBi

Style: Panel

Width: 190 mm

Height: 72 mm

Length: 308 mm

IP Rating: IP54

Impedance: 50 Ohms

Cable Type: RG-402

Application: 4G LTE

Cable Length: 300 mm

Polarization: Linear

Power Rating: 50 W

Mounting Style: Bracket Mount

Number of Bands: 6 Band

Mechanical Style: Module

Maximum Frequency: 2.69 GHz

Minimum Frequency: 699 MHz

Termination Style: Mini-DIN Female

Antenna Connector Type: 4.3 Mini-DIN Female

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
