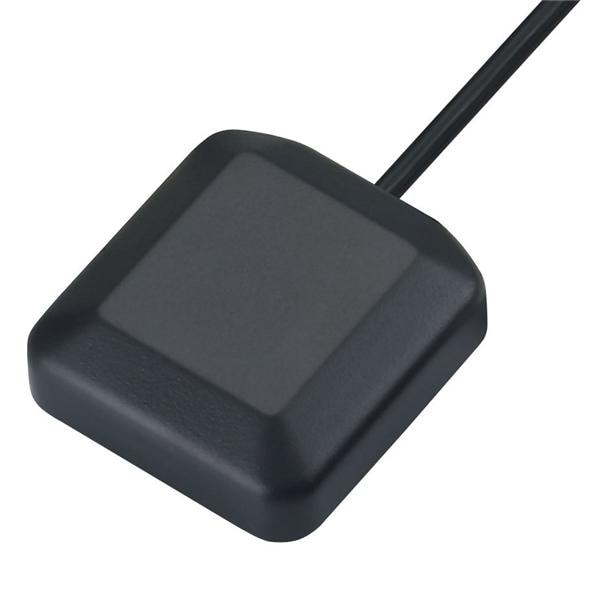

Taoglas IAA.01.121111 Passive Antenna IAA.01 Iridium Automotive Magnetic Mount Antenna, 1.2M RG-174

Gain: 3.7 dBi

VSWR: 1.2

Style: Panel

Width: 38 mm

Height: 12.3 mm

Length: 40.5 mm

Bandwidth: 31.5 kHz

Impedance: 50 Ohms

Cable Type: 1.2 M RG174

Technology: Iridium

Application: Commercial

Unit Weight: 43.500 g

Cable Length: 1.2 m

Polarization: RHCP

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 1.621 GHz

Mechanical Style: Module

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 1.626 GHz

Minimum Frequency: 1.616 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Iridium

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
