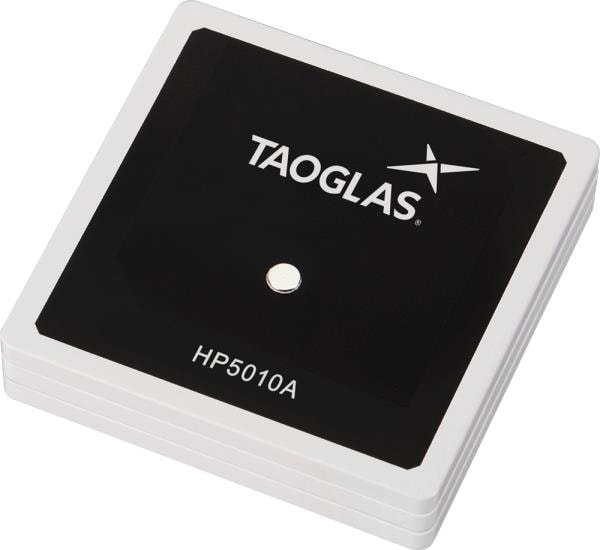

Taoglas HP5010A Passive Antenna GPS L1/L2/L5/Glonass/BeiDou Single Feed CP Stacked 50x50x10.5mm Terrablast Patch

Gain: 4.98 dB, 7.3 dB, 10.4 dB, 10.8 dB. 17.1 dB

VSWR: 2:1, 2:1, 2:1, 2:1, 2:1

Style: Stacked

Width: 50 mm

Height: 10.5 mm

Length: 50 mm

Impedance: 50 Ohms

Application: Agriculture, Defense, E-Mobility, Transporation, UAV Navigation

Unit Weight: 111 g

Polarization: RHCP

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 5 Band

Center Frequency: 1.2276 GHz, 1.561 GHz, 1.57542 GHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.176 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
