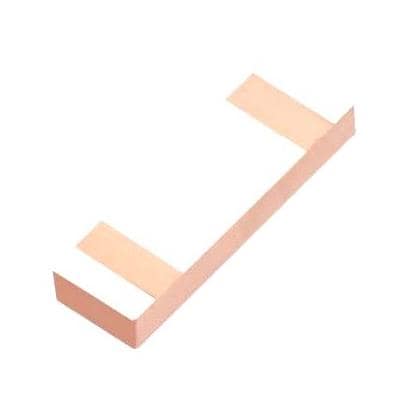

Taoglas GGBLAD.125.A Passive Antenna GNSS L1/L2/L5 LOOP EVB

Gain: 3.6 dBi, 3.3 dBi, 3.3 dBi, 2.6 dBi, 2.8 dBi, 3 dBi

Style: Chip

Width: 3.2 mm

Height: 1.5 mm

Length: 10 mm

Impedance: 50 Ohms

Application: Navigation, RTK Systems, Autonomous Vehicles, IoT Devices, Transportation, Marine, Agriculture, UAVs, Robotics

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 6 Band

Center Frequency: 1.2276 GHz, 1.2788 GHz, 1.561 GHz, 1.57542 GHz

Mechanical Style: Loop

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.17645 GHz

Termination Style: SMD/SMT

Moisture Sensitive: Yes

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
