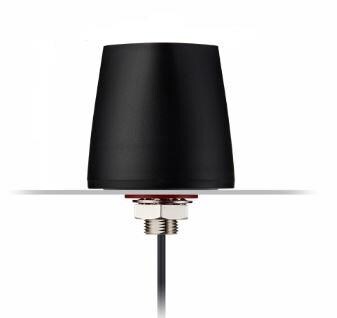

Taoglas G45.A.201111 Passive Antenna Olympian II G45 5G/4G Cellular, Small Form Factor Permanent Mount Antenna

Gain: 0.9 dBi, - 2.1 dBi, 0.8 dBi, - 0.8 dBi, 1.5 dBi, 1 dBi, - 1.3 dBi, 0.2 dBi

Style: Cone

Length: 48.5 mm

Diameter: 50.15 mm

IP Rating: IK10, IP67

Impedance: 50 Ohms

Cable Type: RG174

Application: Digital Signage, Gateways/Routers

Cable Length: 2 m

Polarization: Linear

Power Rating: 2 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 7 Band

Center Frequency: 657 MHz, 700 MHz, 850 MHz, 900 MHz, 1474 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz, 3500 MHz, 4700 MHz

Mechanical Style: Module

Ground Plane Size: 30 cm x 30 cm

Maximum Frequency: 5 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, WCDMA, GPRS, HSPA
