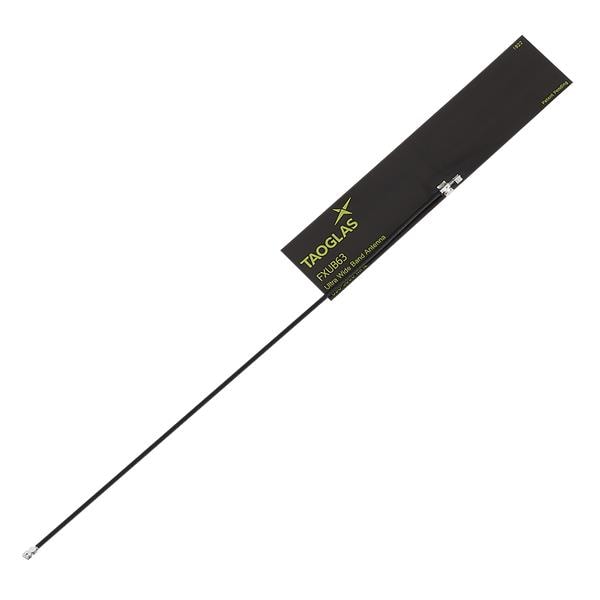

Taoglas FXUB63.54.0150C Passive Antenna FLEXIBLE PCB 4G ANTENNA

Gain: 4.5 dBi, 2.33 dBi, 4.6 dBi, 4.7 dBi, 4.4 dBi, 4 dBi

VSWR: 5.2, 2.0, 1.9, 2.0, 1.8, 1.8

Style: I-Bar Flex

Width: 21 mm

Height: 0.2 mm

Length: 96 mm

Frequency: 698 MHz to 3 GHz

Impedance: 50 Ohms

Cable Type: 150 mm RF1.37

Application: Cellular Application, ISM Application, Satellite Application

Cable Length: 150 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Frequency Range: 698 MHz to 3 GHz

Number of Bands: 6 Band

Center Frequency: 700 MHz, 850 MHz, 900 MHz, 1575 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 2600 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 3 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: I-PEX MHF 4L

Protocol - GPS, GLONASS: Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
