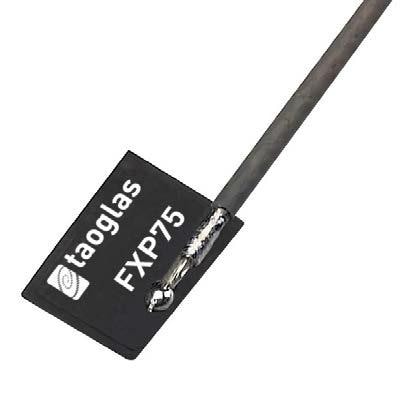

Taoglas FXP75.07.0045B Passive Antenna Atom FXP75 2.4GHz Flex Super Micro PCB Antenna, 45mm oe0.81, I-PEX MHFIU.FL

Gain: 2.5 dBi

VSWR: 2:1

Style: I-Bar Flex

Width: 4.1 mm

Height: 0.24 mm

Length: 5.9 mm

Impedance: 50 Ohms

Cable Type: 45 mm RF1.13

Technology: Bluetooth

Application: Wireless Application

Unit Weight: 1 g

Cable Length: 45 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID

Antenna Connector Type: U.FL Female

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
