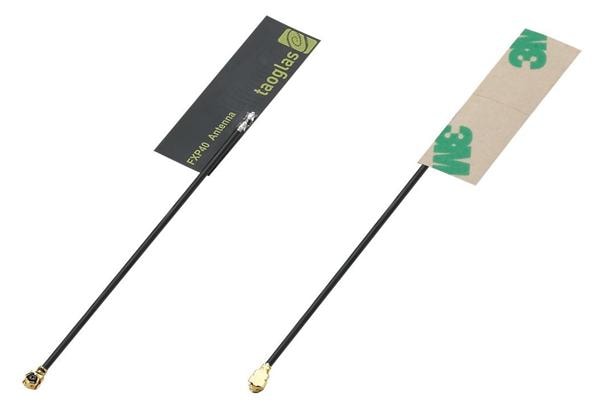

Taoglas FXP40.07.0085A Passive Antenna FXP40 3G/2G Flexible Antenna, 85mm, oe1.13, I-PEX MHFIU.FL

Gain: - 3.83 dBi, -3.25 dBi, 1.37 dBi, 1.03 dBi

Style: I-Bar Flex

Width: 12.1 mm

Height: 0.15 mm

Length: 42.6 mm

Impedance: 50 Ohms

Cable Type: 85 mm RF1.13

Technology: Quad Band

Application: Cellular Application

Unit Weight: 88 g

Cable Length: 85 mm

For Use With: GSM850, GSM900, DCS, PCS

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Monopole

Number of Bands: 4 Band

Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 1.99 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF1

Protocol - WiFi - 802.11: WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS
