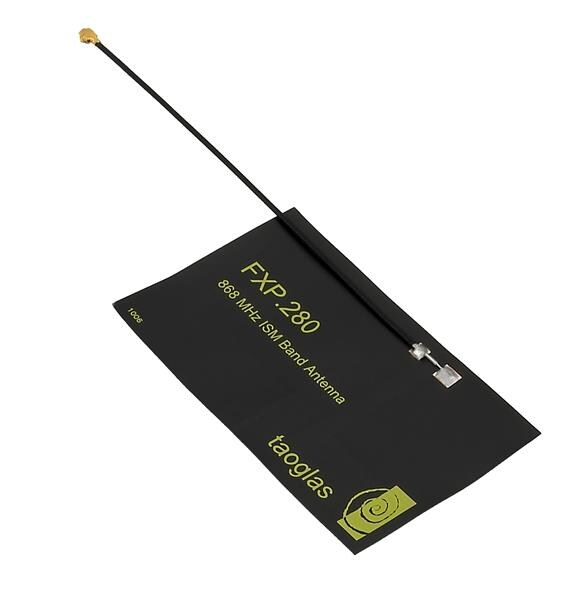

Taoglas FXP280.07.0100A Passive Antenna FXP280 868MHz 1.5dBi Flex PCB Antenna, 100mm 1.13, I-PEX MHFIU.FL

Gain: 1.5 dBi

VSWR: 2:1

Style: I-Bar Flex

Width: 45 mm

Height: 0.2 mm

Length: 75 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Technology: ISM

Application: Medical, Smart Monitor, Smart Home

Unit Weight: 1 g

Cable Length: 100 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 870 MHz

Minimum Frequency: 863 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: IPEX MHF1

Protocol - WiFi - 802.11: LoRaWAN, SigFox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
