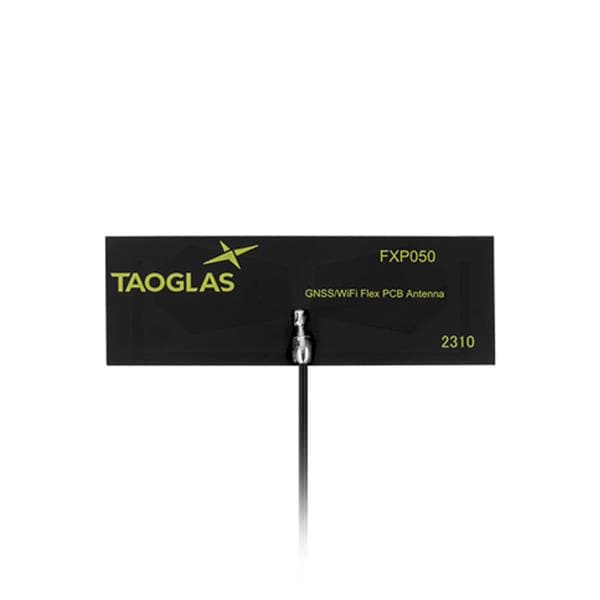

Taoglas FXP050.07.0100C PCB Antenna GNSS/Wifi flex ANTENNA

Gain: 2.14 dB

VSWR: 1.5

Width: 18 mm

Height: 0.2 mm

Length: 53 mm

Impedance: 50 Ohms

Cable Type: 1.37mm Coax

Application: Asset Tracking Systems, Gaming devices, Navigation Devices, Smart Home Devices, Telemedicine Devices

Unit Weight: 2 g

Cable Length: 100 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Frequency Range: 1565 MHz to 1586 MHz, 1596 MHz to 1610 MHz, 1559 MHz to 1565 MHz, 2.4 GHz to 2.5 GHz, 5.15 GHz to 5.85 GHz, 5.95 GHz to 7.125 GHz

Number of Bands: 6 Band

Center Frequency: 1.562 GHz, 1.575 GHz, 1.603 GHz, 2.45 GHz, 5.5 GHz, 6.525 GHz

Mechanical Style: PCB

Maximum Frequency: 7.125 GHz

Minimum Frequency: 1.565 GHz

Termination Style: Connector

Antenna Connector Type: I-PEX MHFI

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
