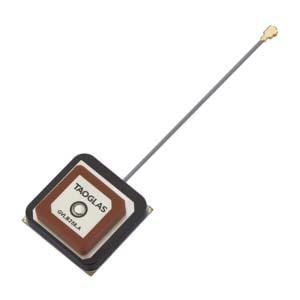

Taoglas AGVLB.25B.07.0060A Embedded Antenna L1/L5 GNSS ACTIVE ANT

Gain: 2.31 dBi, 2.94 dBi, 2.87 dBi, 3.08 dBi, 28.3 dB, 30.3 dBi

Style: Square

Width: 25 mm

Height: 11.92 mm

Length: 25 mm

Impedance: 50 Ohms

Cable Type: 1.13 Coax

Application: Agriculture, Autonomous Vehicles, Navigation, RTK, Security, Transportation, Wearables

Cable Length: 60 mm

Polarization: RHCP

Mounting Style: SMD/SMT

Electrical Type: Patch

Number of Bands: 4 Band

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.166 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF-I (U.FL)

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS, GLONASS, IRNSS, QZSS, SBAS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
