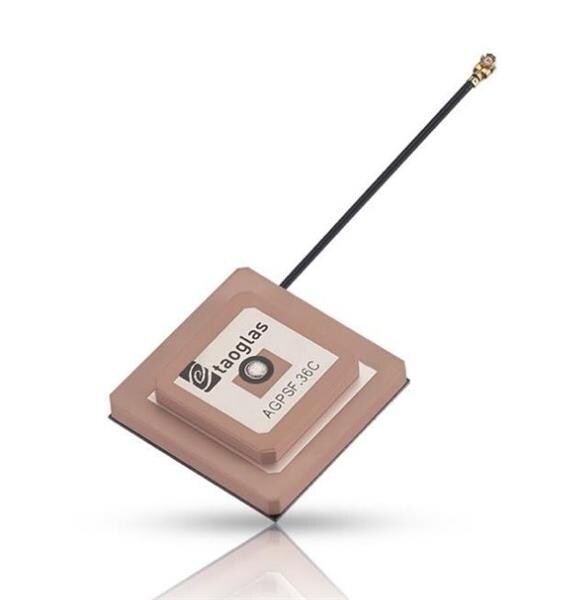

Taoglas AGPSF.36C.07.0100C Active Antenna ACTIVE PATCH GNSS ANTENNA

Gain: 3.57 dBi, 2.73 dBi

Style: Stacked

Width: 35 mm

Height: 11 mm

Length: 35 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: UAVs, Robotics, E-Mobility, E-Scooters, Precision Agriculture, Navigation

Cable Length: 100 mm

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 1.57542 GHz, 1.2276 GHz

Mechanical Style: Patch

Ground Plane Size: 70 cm x 70 cm

Maximum Frequency: 1.576443 GHz

Minimum Frequency: 1.225677 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHFHT

Protocol - GPS, GLONASS: Galileo, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
