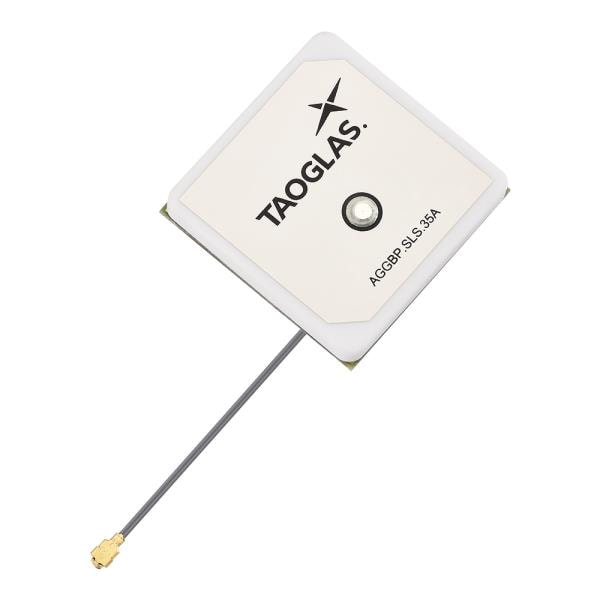

Taoglas AGGBP.SLS.35A.07.0060A Active Antenna ACTIVE PATCH GNSS ANTENNA

Gain: 2.79 dBi, 2.23 dBi, 1.32 dBi

Style: Ceramic

Width: 35 mm

Height: 3.5 mm

Length: 35 mm

Impedance: 50 Ohms

Cable Type: 60 mm RF1.13

Application: Asset Tracking, Navigation, Transportation

Unit Weight: 21 g

Cable Length: 60 mm

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 1.561 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Patch

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.561 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
