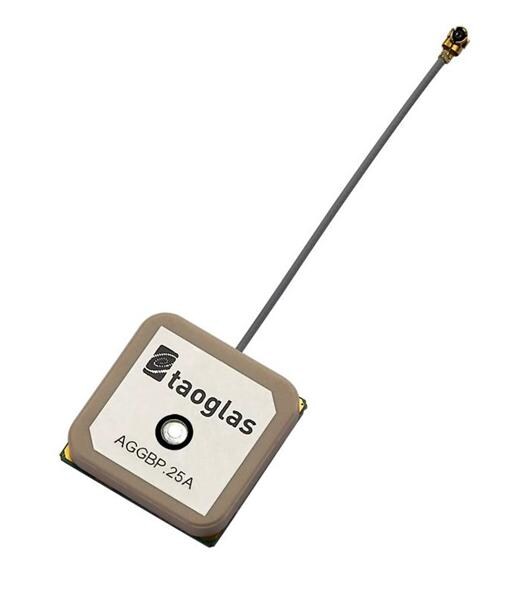

Taoglas AGGBP.25B.07.0060A Active Antenna ACTIVE PATCH GNSS ANTENNA

Gain: - 2.5 dBi, - 1.5 dBi, - 1 dBi

VSWR: 2

Style: Ceramic

Width: 25.1 mm

Height: 4.7 mm

Length: 25.1 mm

Impedance: 50 Ohms

Cable Type: 60 mm RF1.13

Technology: BEIDOU, GPS, Galileo, GLONASS

Application: Satellite Applications

Unit Weight: 12 g

Cable Length: 60 mm

For Use With: BEIDOU, GPS, GALILEO, GLONASS

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 1.57542 GHz, 1.561098 GHz, 1.602 GHz

Mechanical Style: Patch

Maximum Frequency: 1.607 GHz

Minimum Frequency: 1.559052 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
