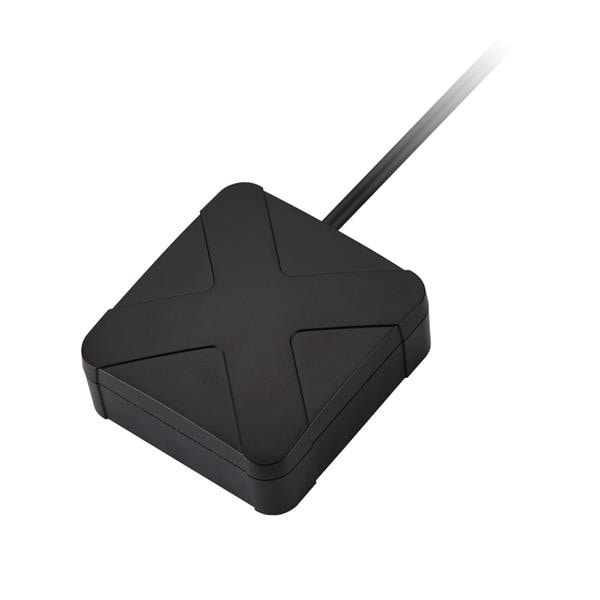

Taoglas AA.215.201111 External GNSS L1/L5/L-Band External 2m RG-174 SMA(M)ST

Gain: 4.82 dBi, 4.9 dBi, 5.02 dBi, 5.04 dBi, 4.59 dBi

VSWR: 1:1

Style: Rectangular

Width: 67.2 mm

Height: 26.5 mm

Length: 63.2 mm

Frequency: 1.17645 GHz to 1.602 GHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG174

Application: Navigation, Robotics

Cable Length: 2 m

Polarization: RHCP

Mounting Style: Magnetic Mount

Frequency Range: 1.17645 GHz to 1.602 GHz

Number of Bands: 5 Band

Mechanical Style: Module

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.17645 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
