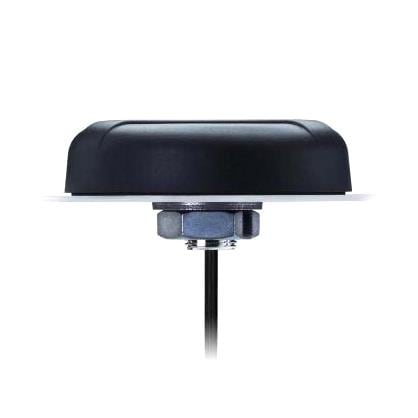

Taoglas A.80.A.101111 Active Antenna Bolt A.80 GPS L1 L2 Permanent Mount Antenna 1M RG-174, SMA(M) ST 94.3*25.4mm

Gain: 1.21 dBi, 3.99 dBi

VSWR: 2

Style: Dome

Length: 25.4 mm

Diameter: 94.3 mm

Bandwidth: 10 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG174

Application: Satellite Applications

Unit Weight: 381.024 g

Cable Length: 1 m

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Number of Bands: 2 Band

Center Frequency: 1.353 GHz

Mechanical Style: Module

Maximum Frequency: 1.57842 GHz

Minimum Frequency: 1.2276 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C
