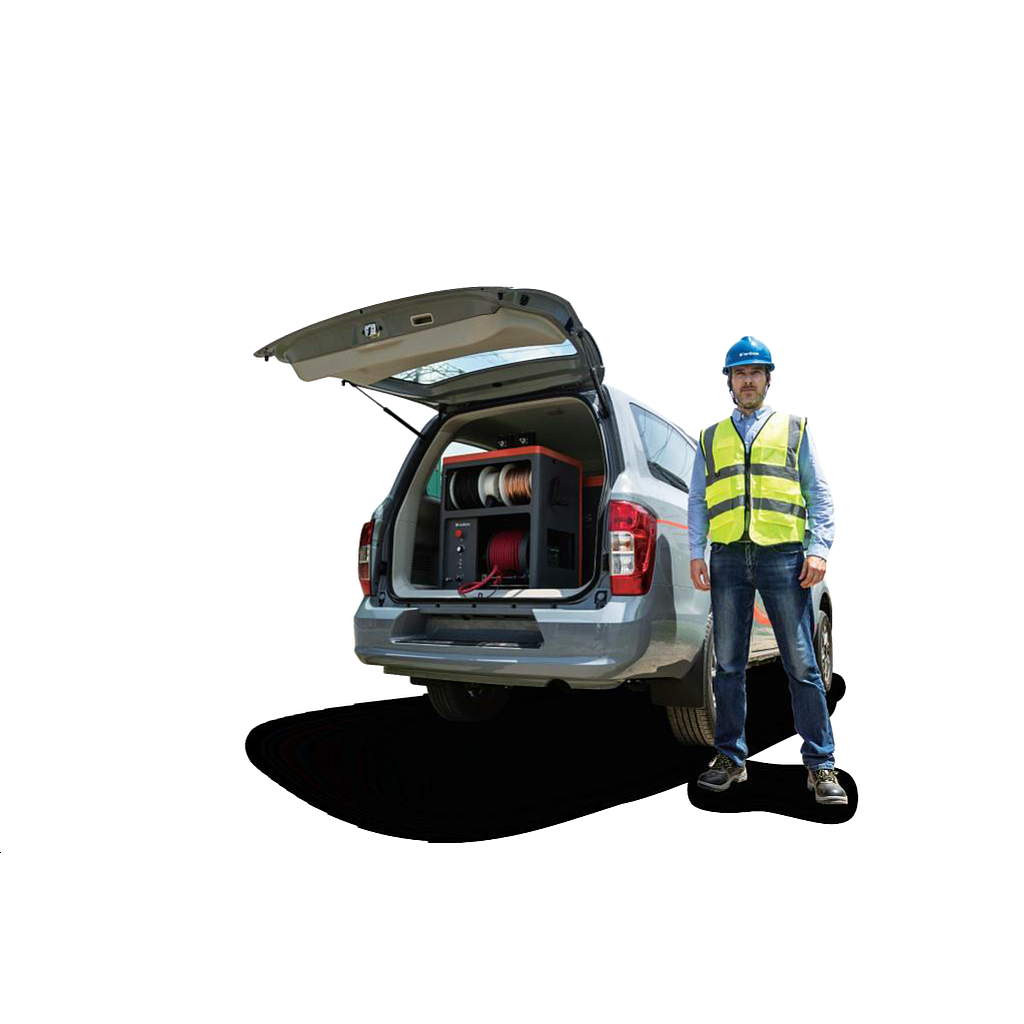

Tanbos TBS-1000 Cable fault location system

HIGH VOLTAGE PART TECHNICAL DATA:

HV DC source: 0-32 kV DC test (DC hipot); 60 mA nominal continuous current at 32 kV

Breakdown detection: 0-32 kV

Standard surge levels: 0… 8 / 0 … 16 / 0 … 32 kV;     2,432 / 2,432 / 2,432 J

Surge rate: Adjustable 3-10 sec, and single shot

Built-in prelocation: TDR,ARM ,ICE,DECAY

Sheath testing: 0-32kV

Communication ways: Wi-Fi 2.4G

Control: Auto Go APP(Android version)

Grounding detect range: ≥0.5Ω

Grounding detect set: 2~10Ω adjustable

Grounding detect accuracy: Better than 0.2Ω

Step voltage detect range: 0.5~200V(peak)

Step voltage detect set: 0.5~42V(30VAC)

Step voltage detect accuracy: Better than 0.2V

Operating temperature: -20 ~ +45℃

Storage temperature: -40 ~ +60℃

Weight: 180kg

Mains input supply: 220V AC,50/60 Hz,2kW

Dimensions (L x W x H): 900*650*703 mm

Protection class: IP43

RADAR AND CONTROL UNIT TECHNICAL DATA:

TDR setup: Physically and functionally integrated

Contorl: Wireless tablet computer and Emergency Stop Box

Display: 11.5''

Pulse generation: Bipolar

Pulse amplitude: 50v

Pulse width: 50ns ~10μs

Measuring range: 0 m-100 km, at VOP = 80 m/µs

ProRange: 0 -40dB

Resolution: 0.1m(at 172m/μs)

Accuracy: 0.001

Gain level: 6

Data rate: 200MHz

Velocity of propagation: 100-300m/μs

Multishot support: Yes, 5 HV fault traces,

Waveform storage capacity: Unlimited
