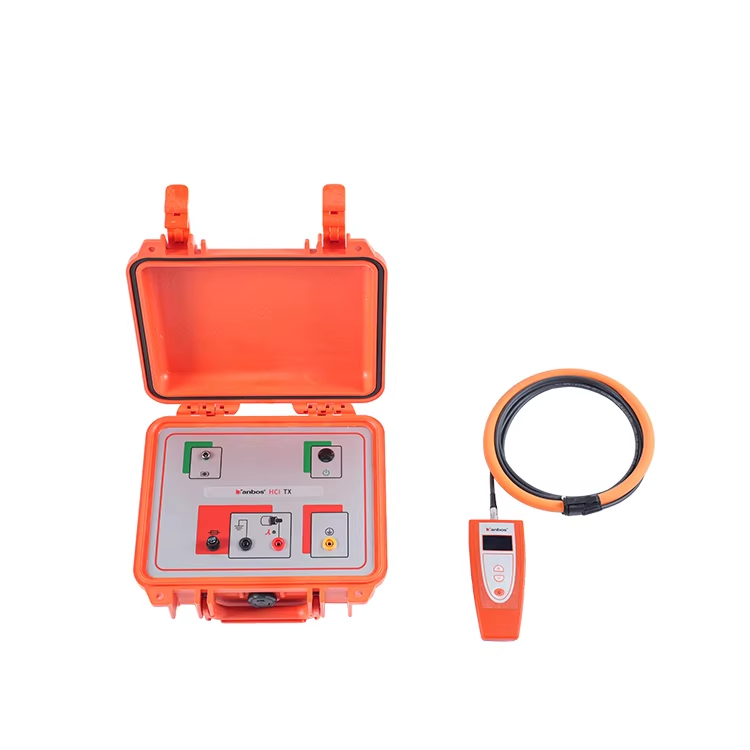

Tanbos HCI Cable Identifier For De-energised Cables

Transmitter:

Display: LED signal strength indicator (red/yellow/green) ; LED battery status indicator (red/yellow/green)

One-button operation: ON/OFF

Pulse Voltage: 100V, DC

Pulse current: 0-100A

Pulse frequency: 30 times/min

Pulse width: 60ms

Power supply: AC 100-240V, 50 Hz or built-in 12V lithium battery

On-site use time: Over 6 hours, continuous use

Charge time: 6 hours

Weight: 1.5kg (no battery); 3kg ( with battery)

Size: 325 x 248 x 125 (mm)

Receiver (LED optional) :

Display: LCD screen indicates the target cable (target cable) ; LCD screen indicates non-target cable (no signal)

Clamp: Flexible clamp, φ19mm

Gain: 10gears (-3dB to +24 dB)

Power supply: 4 x AAA

On-site use time: ＞50hours

Weight: 400g (with clamp and battery)

Size: 165 x 80 x 30 (mm)
