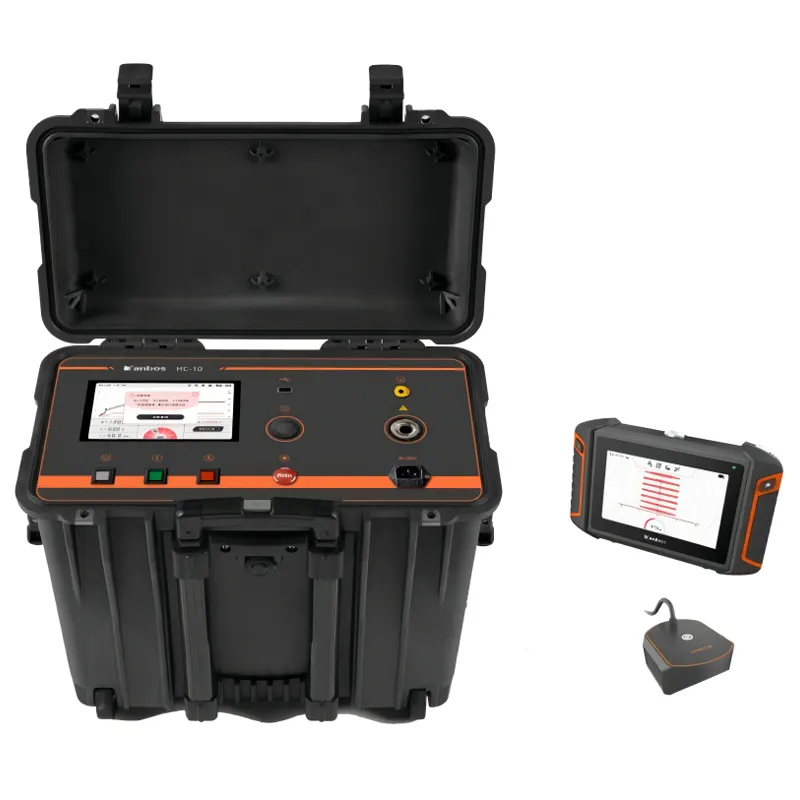

Tanbos HC-10 Sheath fault location system

TECHNICAL DATA:

Output voltage: 0 … 10kV

Output current: 150mA

Test voltage: 0 … −10kV

Insulation resistance test: 0…650MΩ

Maximum permitted capacity of the test object: 10 uF

Pinpointing: 0 -10 kV DC, pulsed selectable ; 0.5:1 / 1:2 / 1.5:3.5

Power supply (rated voltage): AC 90V…240V,50/60Hz

Battery: Built-in battery (615Wh)

Endurance (battery powered): 6h

Power consumption: max. 800 VA

Display: 8000 x 480 LCD, 1000cd/m²

Operating temperature: -20℃...+55℃

Storage temperature: -40℃...+65℃

Dimensions (W x H x D): 500*457*305mm

Weight: 18.5KG

Protection rating: IP54
