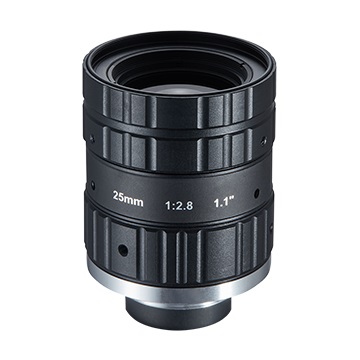

Tân Hưng Hà MVLA-252812 Lens Camera (25mm, F2.8, 1.1 inch, 12MP Lens, C-Mount.)

Lens Type: 25mm, F2.8, 1.1 inch, 12MP Lens, C-Mount

Focal Length: 25 mm

F-Number: F2.8~F16

Image Size: Φ17.6 mm(1.1 inch)

Optical Distortion: 0.40%

Minimum Operation Distance: 0.15 m

Field of View: D（17.52mm): 36.7°, H（14.14mm): 29.6°, V（10.35mm): 22.1°

Iris Control: Manual

Focus Control: Manual

Filter Thread: M35.5*0.5

Mount: C-Mount

Flange Back Length: 17.526 mm

Dimension: Φ38.6×49.31 mm

Weight: 133 g

Temperature: -10 ~ 50℃

Key Feature

• High resolution, high definition of the whole image.

• Low distortion, high illumination relative.

• Excellent mechanism design, improve the shock resistance and high/low temperature stability.

• Multilayer wide band coating, ensuring high transmittance of visible and near infrared light.

• Support ultra short working distance, maintaining excellent optical properties at different object distances.
