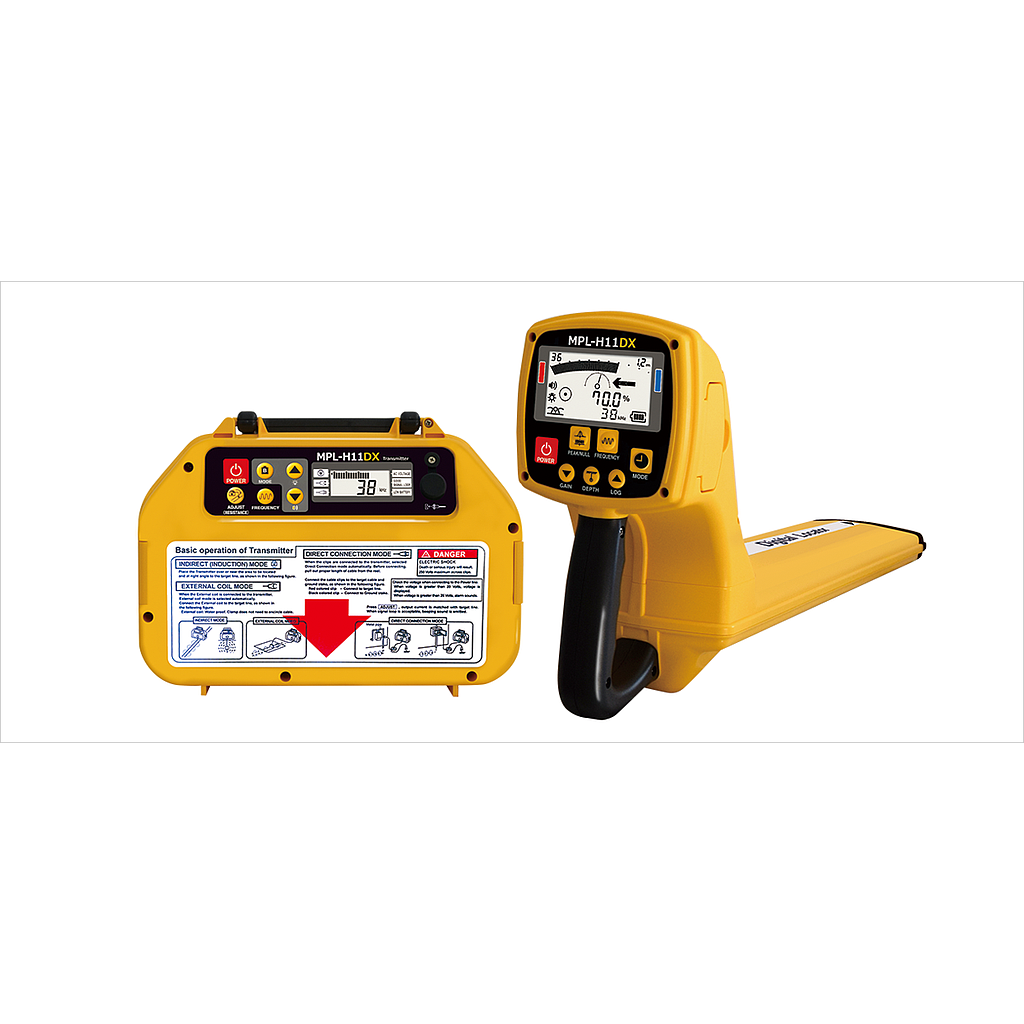

TAKACHIHO MPL-H11DX HP Pipe&cable locator (512 Hz ~80kHz)

Transmitter

Output frequencies

38 kHz  :38 kHz±0.02% (Standard frequency)

9.5:9.5 kHz±0.02%

80 kHz :80 kHz ±0.02%

512 Hz :512 Hz ±0.02% (Direct connection mode

Dual  :9.5 kHz /38 kHz±0.02% (Direct connection mode

CD: :9.5 kHz /512Hz±0.02% (Direct connection mode

FF :9.5 kHz /512Hz±0.02% (Direct connection mode

Output power: 7 watts maximum  / 80kHz: 1 watt maximum

Operating Modes

Direct connection mode

Inductive mode

Inductive mode

External coil mode (optional )

Battery type : Eight  Alkaline  LR20 “D”

Battery Life:

Direct mode       : 50 hours (Output 4 mA , 20°C /  68°F)

Inductive mode :  20 hours (Output 50% , 20°C /  68°F)

10 hours (Output 100%20°C /  68°F)

Full Power(7W) :  8 hours  (20°C /  68°F)

Battery Status :Low battery indication  &  Press key readout

Visual Indication : LCD :  Bar graph  &  Digital number,  includes

Audio Indication : Internal Speaker  :  Alarm, Beeping sounds

Measuring function

Output Current  :  0 to 999 mA

Line Voltage :  0 to 250 V

Resistance: 0 to 10M ohms

Output protection: AC 250V (512Hz: Output is cut off automatically)

Approvals: Bluetooth®5.2 (Bluetooth® Low Energy) -20°C to  50°C /  -4°F to 122°F

Operating Temperature: -20°C to  50°C /  -4°F to 122°F

Dimensions

When using   : 261 x 314 x 110 mm(10.3" x 12.4" x 4.3")

When storage: 227 x 314 x 110 mm(  8.9" x 12.4" x 4.3")

Weight : 3.6 kg/ 7.9 lbs. approx.  including eight batteries

Receiver

Active Frequencies

38 kHz : 38 kHz ±2%

9.5 kHz : 9.5 kHz ±2%

80 kHz : 80 kHz ±2%

850 Hz : 850 Hz ±2%

512 Hz : 512 Hz ±2%

CD : 512 Hz  and 9.5kHz

FF : 512 Hz  and 9.5kHz

Passive Radio RAD : 9 k to 33 kHz (80 bands)

Passive Power

POW : 45~65 Hz

120 Hz : 95~125 Hz

Battery: type Six  Alkaline  LR6  “AA”

Battery Life: 18 hours  (20C /  68F)

Battery Status: Continuous indication

Power save function: Automatically power off after 5minutes of inactivity

Visual Indication LCD : Bar graph , Digital number & character,  include Backlight

Depth Display Range

High precision depth measurement

Line:

0 to 5 m /16 ft.  ( 0-5 m / 0-16 ft. mode)

0 to 10 m /30 ft. (0-10 m / 0-30 ft. mode)

Probe : 0 to 10 m /30 ft.

Real time depth measurement: 0 to 9.9 m / 33ft.

Depth Readout Unit: Meter / Feet & Inch

Depth Accuracy

1 2.0m / 6.5ft. :  ±2.5%

 3.0m / 10ft.  :  ±5%

 5.0m / 16.5ft.  :  ±10%

Current value: Current value flowing on the conductor is displayed for line identity in milliamps.

Audio output: Internal Speaker with sound volume adjusting function, Earphone (optional)

Data logging: Memorized 400 points of the depth/ the current measurement/ the date and time data.

Approvals: Bluetooth®5.2 (Bluetooth® Low Energy)

Operating Temperature: -20°C to  50°C /  -4°F to 122°F

Dimensions: 660 x 130 x 270 mm (26.0" x 5.1" x 10.6")

Weight: 2.1 kg/ 4.7 lbs. approx. including six batteries
