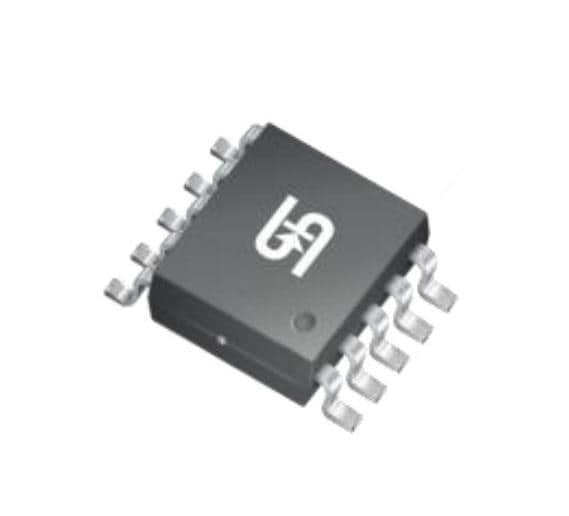

Taiwan Semiconductor TS19501CB10 RBG Automotive Headlight High Integrated Dimmable LED Controller Spread Spectrum Frequency Modulation

Dimming: With Dimming

Features: PWM Dimming, Short Circuit and Thermal Protection

Topology: Boost, Buck, SEPIC

Input Voltage: 4.5 V to 38 V

Mounting Style: SMD/SMT

Output Current: 240 uA

Output Voltage: 18 V

Number of Outputs: 1 Output

Number of Channels: 1 Channel

Input Voltage - Max: 38 V

Input Voltage - Min: 4.5 V

Operating Frequency: 200 kHz

Supply Current - Max: 4 mA

Pd - Power Dissipation: 1.1 W

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
