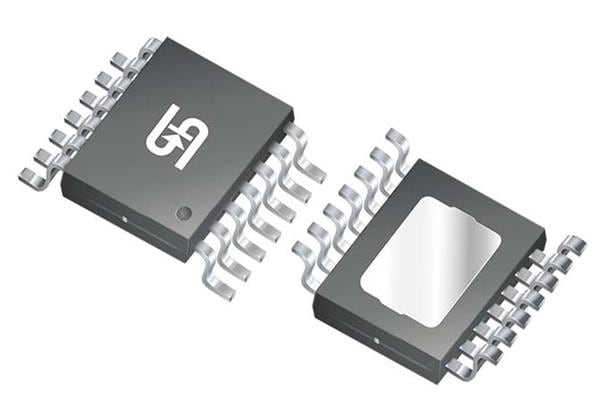

Taiwan Semiconductor TQL820CA14V50 RLG Low-Dropout Regulator 200mA, Low-IQ 40A Low-Dropout Regulator with Enable, Reset, Watchdog Functions

Output Type: Fixed

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 5 V

Dropout Voltage: 110 mV

Line Regulation: 20 mV

Load Regulation: 5 mV

Number of Outputs: 1 Output

Quiescent Current: 40 uA

Moisture Sensitive: Yes

Input Voltage - Max: 50 V

Input Voltage - Min: 3 V

Dropout Voltage - Max: 340 mV

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 59 dB
